Big Bag lifter - BB-2300

HNH Big Bag Lifter – Specifications

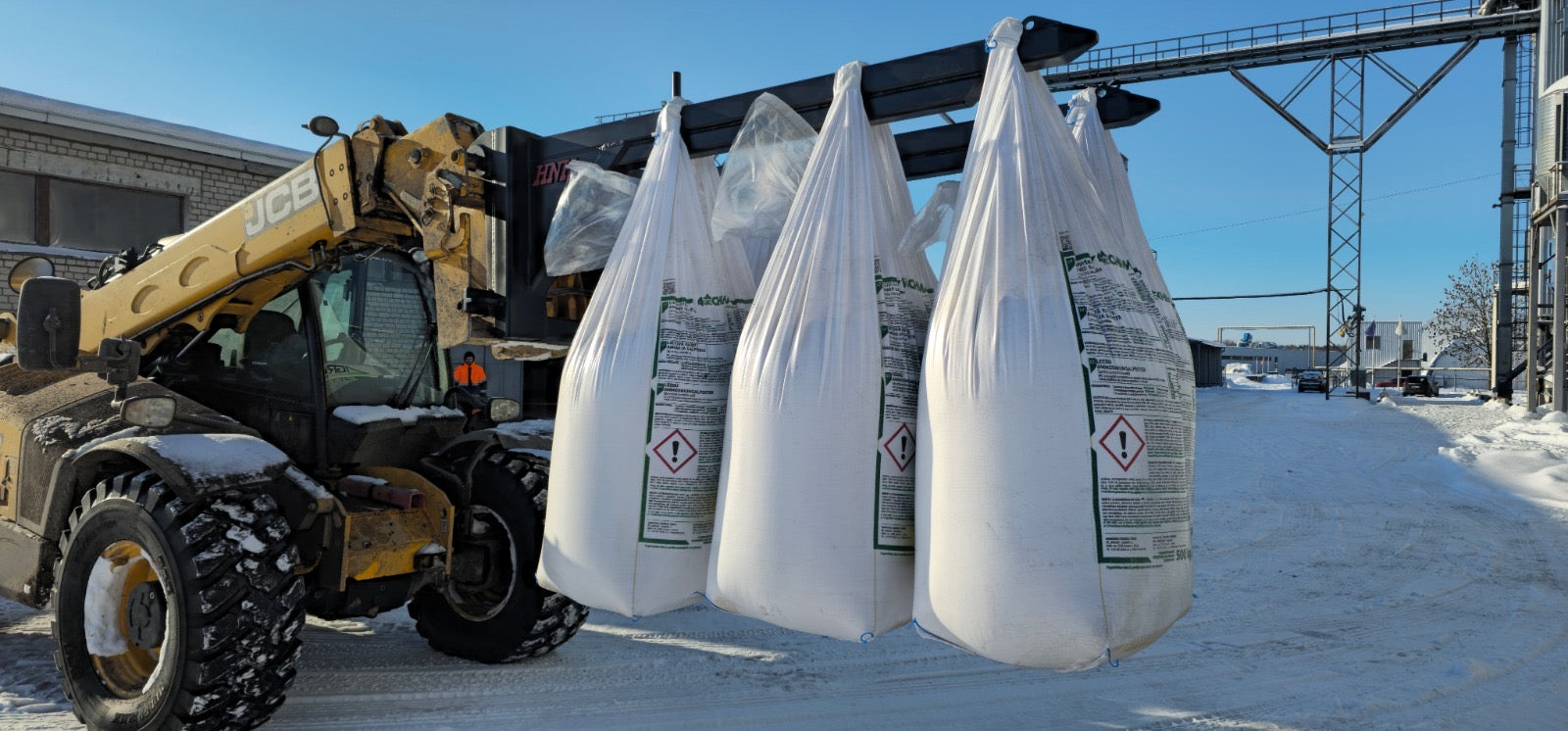

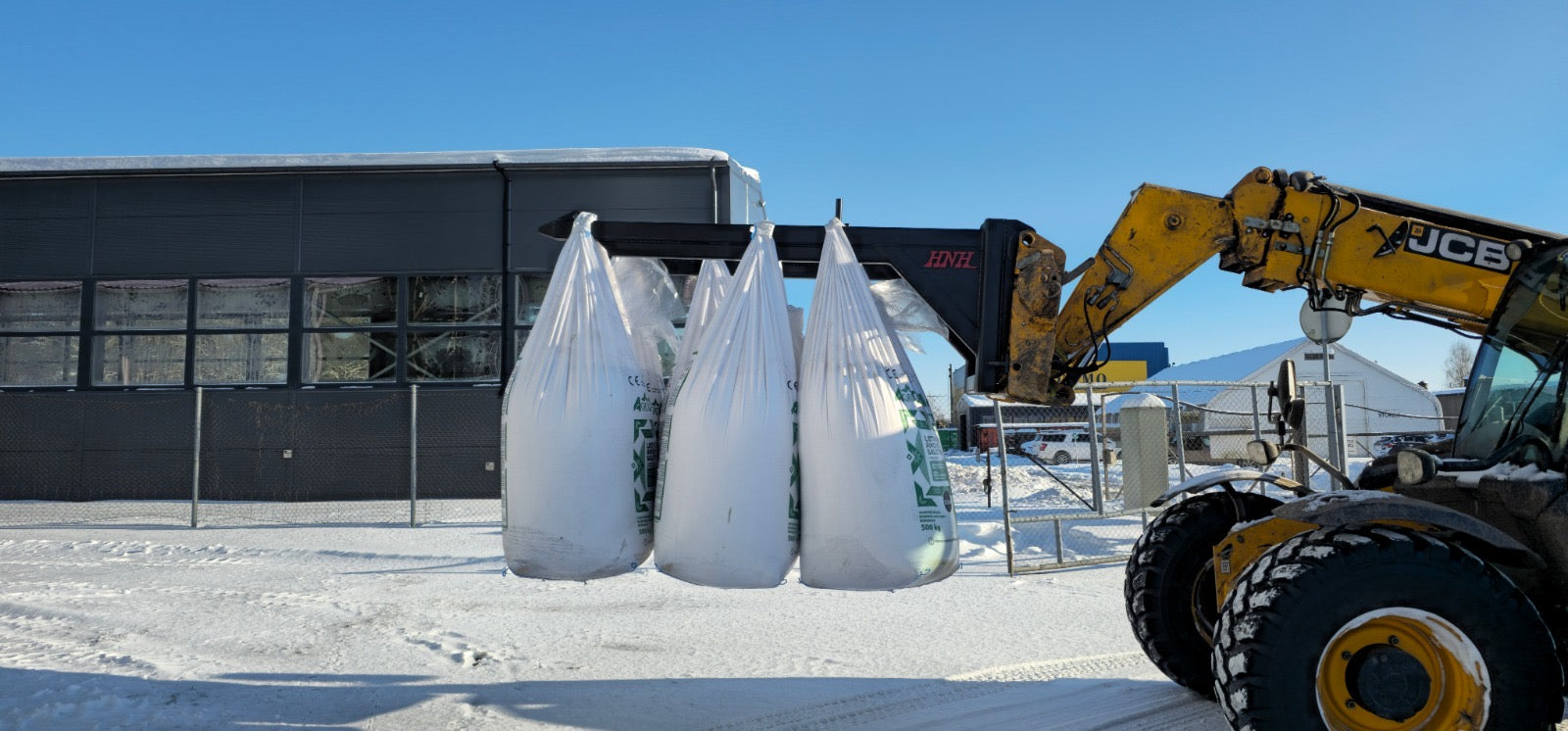

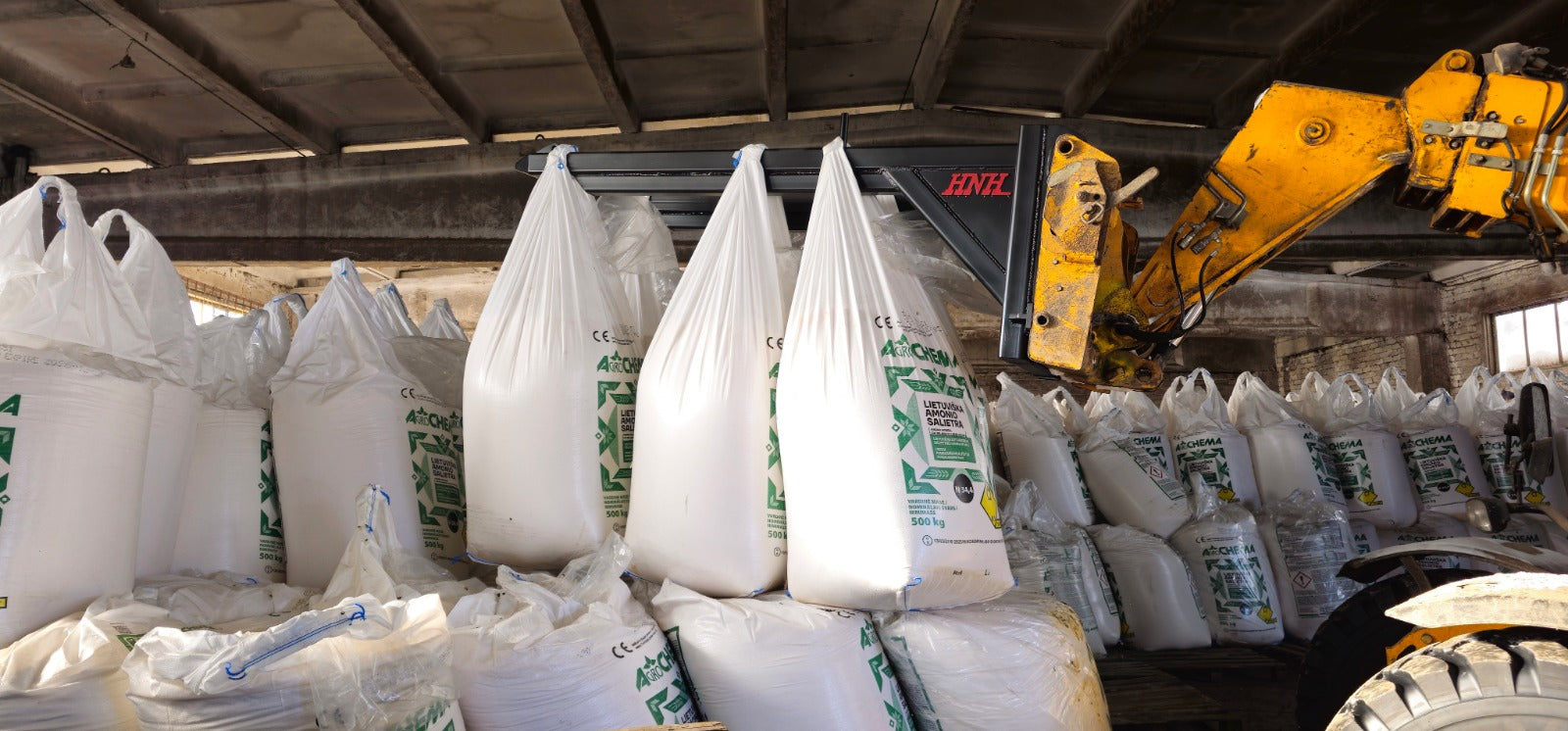

The HNH Big Bag Lifter (BB-2300) is designed for the safe and efficient handling of bulk bags in agricultural, construction, and industrial environments. Built with a strong reinforced frame and extended reach, it allows operators to lift, transport, and position multiple bags with confidence and stability.

Featuring both rear and front support structures, the BB-1700 helps prevent bags from tipping forwards or backwards during lifting and travel, improving safety and control when handling heavy loads.

Model: BB-2300

• Overall length: 2300 mm

• Overall width: 650 mm

• Overall height: 800 mm

• Weight: approx. 350 kg

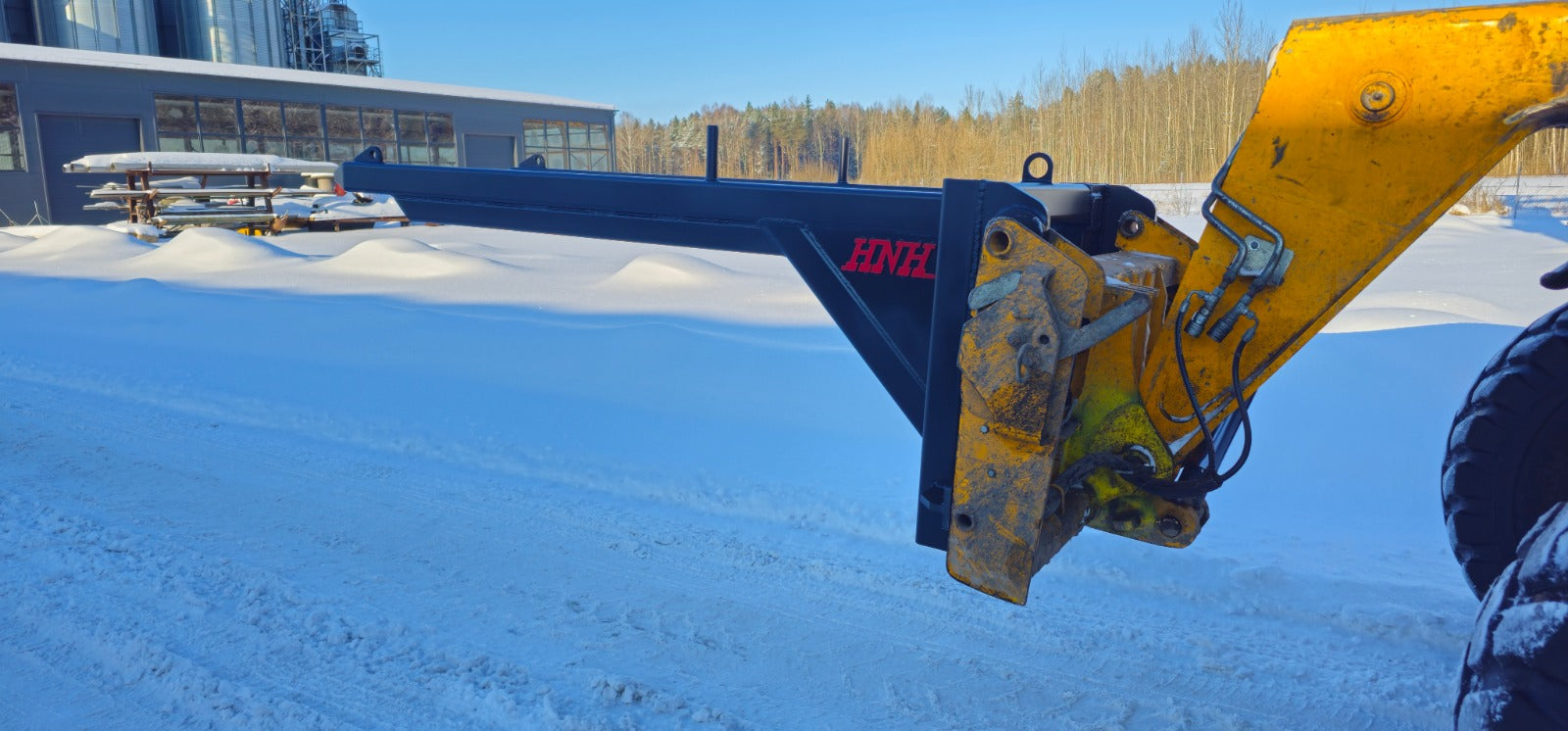

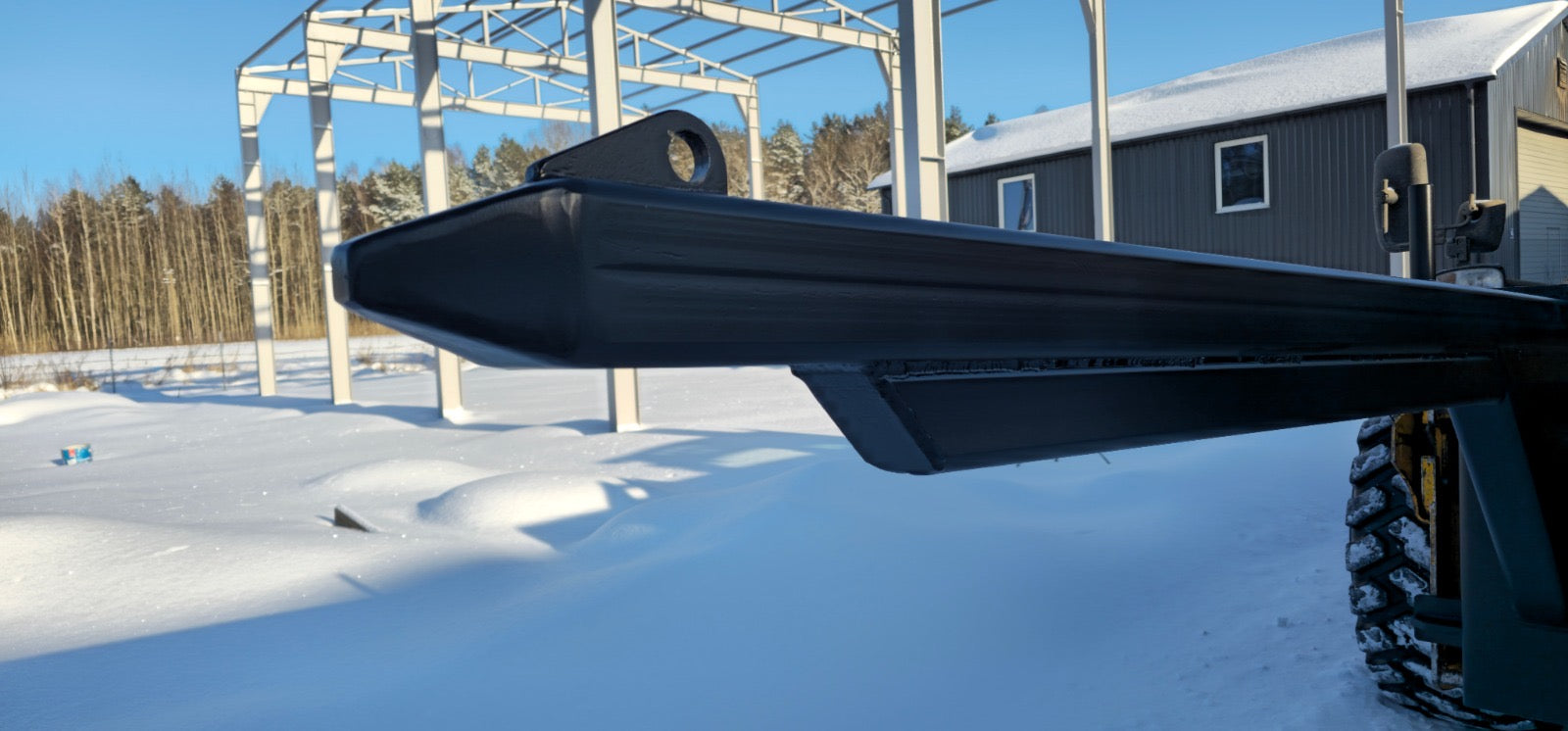

Construction & Design

• Main extension: 100 × 100 × 8 mm steel

• Extension supports: 80 × 80 × 8 mm steel

• Main frame construction: 150 × 100 × 8 mm steel

• Rear support frame: Prevents bags from tipping backwards

• Front support frame: Prevents bags from tipping forwards

Capacity & Performance

• Capable of lifting up to 6 big bags

• Maximum bag weight: 600 kg per bag

Key Features

• Heavy-duty frame designed for high load capacity

• Front and rear bag support for increased safety

• Suitable for agricultural, construction, and bulk handling applications

• Compatible with telehandlers, loaders, and forklifts

Note: Overall weight may vary depending on mounting and connection type.
